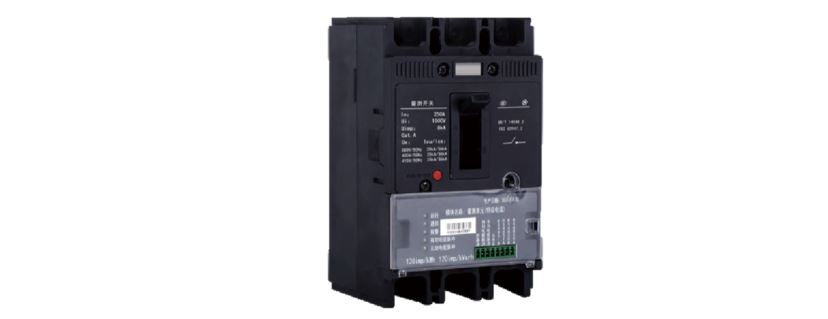

Smart Measurement Switch
The smart measurement switch monitors in real time distribution line voltage, current, power, and has advanced applications such as edge management, topology identification and power consumption analysis, with basic features of low-voltage distribution line connection, breaking and short-circuit overload protection. It is developed based on traditional low-voltage switches, high-precision current sensors and measurement units. The product provides good support for digital IOT of distribution network. The product complies with the "Smart Energy Measurement Switch Technical Specification-2021". Its measurement unit is module-based and separated from the switch body structure, and supports hot-swapping and interchangeability.
Key Features
- Electrical protection
Protection for under-voltage, over-voltage, short-circuit, overload, shortage, etc.
- Data freezing
Instantaneous freeze, minute freeze, whole point freeze, daily freeze and monthly freeze can be done for measurement data.
- Topology identification
It has topology identification function for low-voltage station area to support the master station on fault location and line loss analysis, etc.
- Communication function
It has RS-485, HPLC, and Bluetooth communication feature and supports DL/T645, 698 and other protocols
- Event recording
Support the recording functions of breaking, power down, over-voltage, under-voltage, phase break, zeroing events, etc.
- Measurement function
Precise measurement of phase voltage, current, power, power factor, frequency, etc.
- Power quality monitoring
Analyze grid voltage and current harmonics, assess power quality, and provide data for power generation quality assessment.
- Temperature monitoring
It monitors circuit breaker inlet and outlet terminal connection temperature in real time, and can set circuit breaker tipping when temperature exceeds the limit. Remote control feature supports local breaking and remote breaking.
- Pulse output
With active energy electric pulse output, second pulse output.
